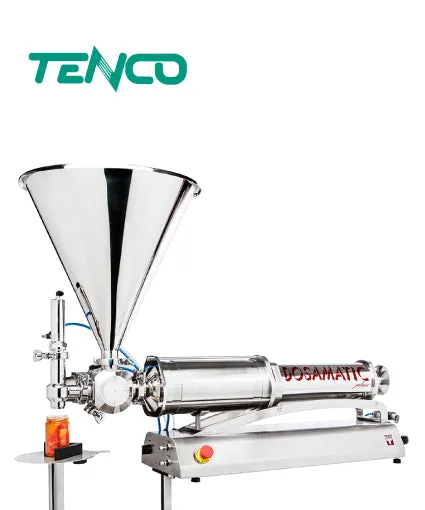

The Dosematic Plus is a single head volmetric filler / dosing machine, manufactured by Tenco, for filling bottles and jars with thick / gloopy / viscous products (such as sauces, jams, etc.), and/or free running or slightly viscous still liquids (such as wine, spirits/liqueurs and oils). The machine allows you to precisely dose small or big quantities of product, and can be used to dose drink, food, cosmetic, chemical, or pharmaceutical products - you can even fill high density products with the Dosamatic Plus. The machine allows you to fill your products into jars and bottles of any material.
- Single head
- Easy to use
- Precision filling
- Uses a simple filling method - through a suction system the product is introduced into the dosing chamber and pushed through the output valve and attached nozzle
- Customised valves & nozzles suitable for your product's viscosity - nozzles are interchangeable
- AISI 316 stainless steel contact parts, so suitable for both the food & pharmaceutical industries
- Associated seals can be supplied in the appropriate material to suit the industry or temperature to be filled at
- Pneumatic machine*
- Issues doses within the following range: 200 to 5,000 ml
- Hand-wheel at the back of the Dosematic which determines the product volume
- Product delivery via mounted hopper or via hose from external storage tank
- Available as a bench-top version or on a trolley in order to be easily connected to a storage tank
- Easy to clean an dismantle (no tools required)
- Optional accessories include hoppers (heated if necessary; with pressing/push-down system if necessary - for pastes, doughy products, or gelato); heating element for cylinder; mobile handle (hand-held) valve; Doypack pouch filling device, etc.
NB A compressor is required to operate this machine - see Specification
NB For filling smaller capacity doses (from 1ml) and/or for a narrower dose range, please see the Doselite.
Please call us on 01404 892100 to discuss your filling requirements.
Please see the Fillers category in Catalogue for our full range of filling machines.
